PTFE
Guidewire

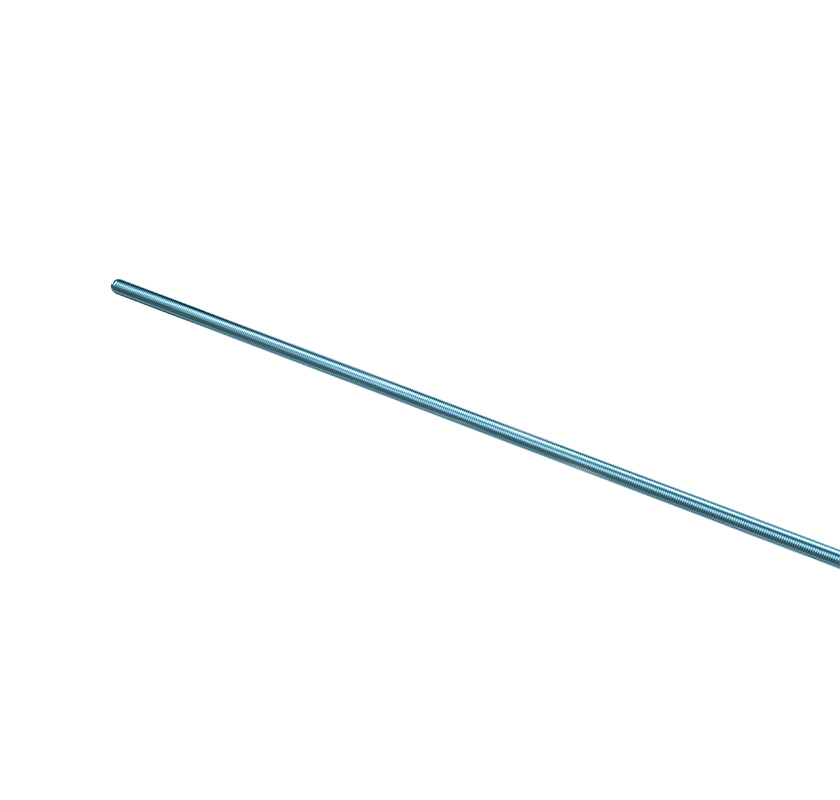

The surface is coated with a stable, durable PTFE layer that provides an extremely low coefficient of friction, ensuring smooth navigation and reduced mucosal injury. The integrated round-wire core shaft delivers 1:1 torque transmission and sensitive tactile feedback, with excellent kink resistance and precise maneuverability. The soft, shapeable tip retains its formed curve reliably, making it well suited for routine procedures requiring fine control, such as angiography and coronary interventions.

Product Features
Glide Through with Confidence
Feel Every Detail, Trust the Support

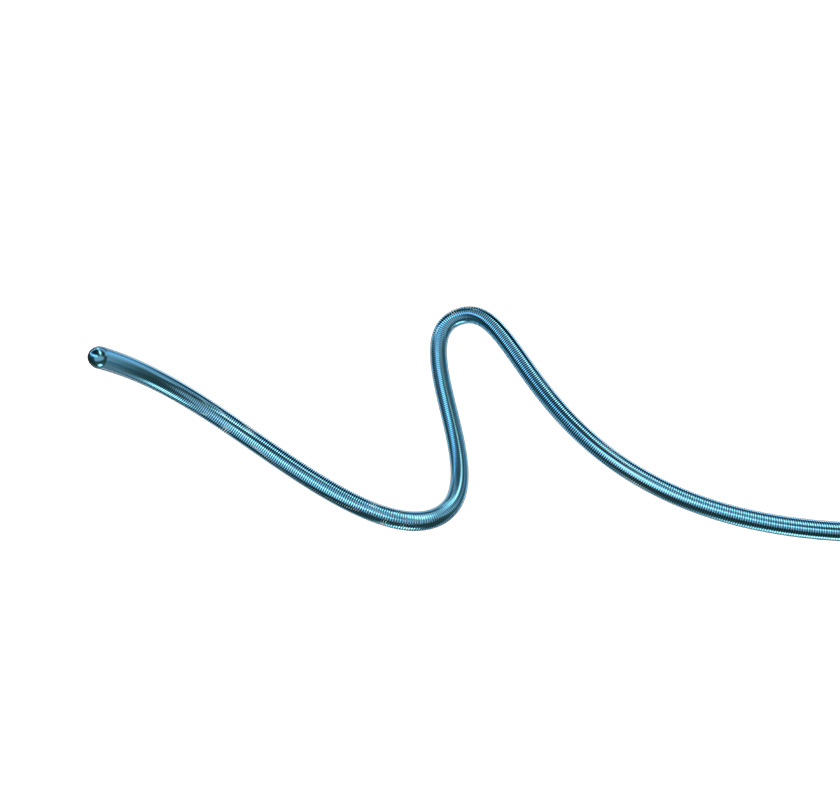

Shape It Your Way, Navigate with Ease
Stable, smooth PTFE coating provides enhanced lubricity and deliverability
Integrated core wire structure offers sensitive tactile feedback, strong support, and kink resistance
while allowing easier tip reshaping and straightening
Intended Use
Indicated for vascular or cavity angiography, and for guiding catheters and other devices to the target site.
Technical Specifications & Materials
Number Specifications Outer diameter of guide wire
D/mm
Guide wire length
L/mm
Winding diameter
/mm
d1
/mm
L1
/mm
L1
/mm
1 0.038*150cm / Straight / Soft 0.96 1500±15 0.165±0.01 0.18±0.01 80±5 45±3
2 0.038*180cm / Straight / Soft 1800±15
3 0.038*260cm / Straight / Soft 2600±15

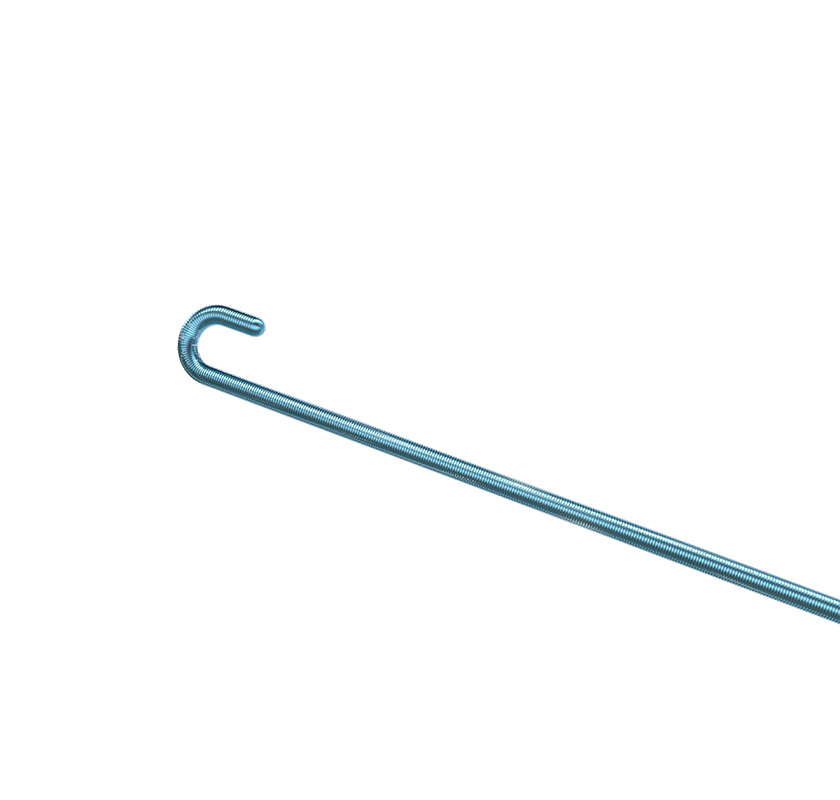

4 0.038*150cm / J-shape / Soft 1500±15
5 0.038*180cm / J-shape / Soft 1800±15
6 0.038*260cm / J-shape / Soft 2600±15
7 0.038*150cm / Straight / Hard 1500±15 0.20±0.01 60±5 26±2
8 0.038*180cm / Straight / Hard 1800±15
9 0.038*260cm / Straight / Hard 2600±15
10 0.038*150cm / J-shape / Hard 1500±15
11 0.038*180cm / J-shape / Hard 1800±15
12 0.038*260cm / J-shape / Hard 2600±15
13 0.035*150cm / Straight / Soft 1500±15 0.18±0.01 80±5 45±3
14 0.035*180cm / Straight / Soft 0.89 1800±15
15 0.035*260cm / Straight / Soft 2600±15
16 0.035*150cm / J-shape / Soft 1500±15
17 0.035*180cm / J-shape / Soft 1800±15
18 0.035*260cm / J-shape / Soft 2600±15
