Peripheral Micro
Guidewire

The peripheral micro-guidewire is intended for use in percutaneous transluminal angioplasty (PTA) or other endovascular interventional procedures to assist in the placement and exchange of balloon dilatation catheters or other therapeutic devices.

Product Features
Precise Control
Flexible Navigation
Reliable Support
Hydrophilic Smoothness

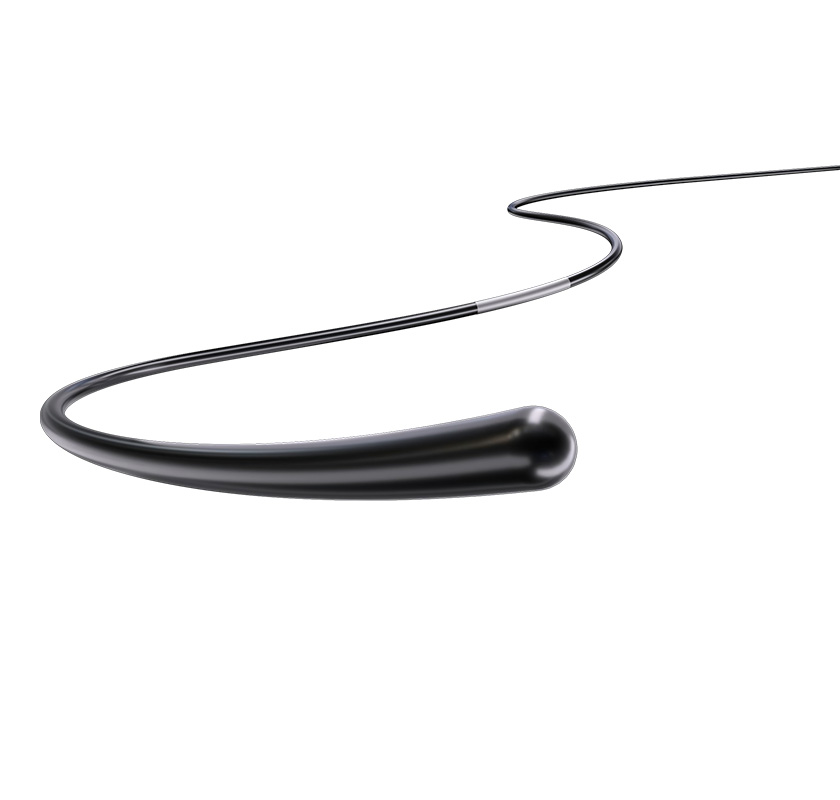

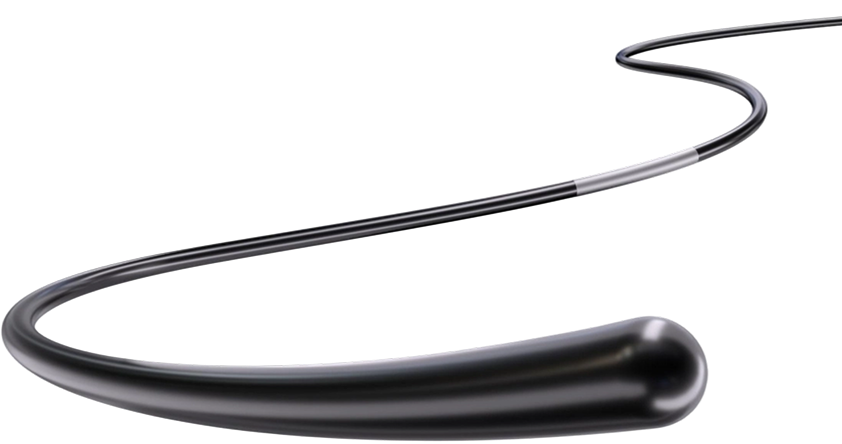

High-strength stainless steel and nickel-titanium alloy composite core wire provides excellent 1:1 torque transmission and tactile feedback

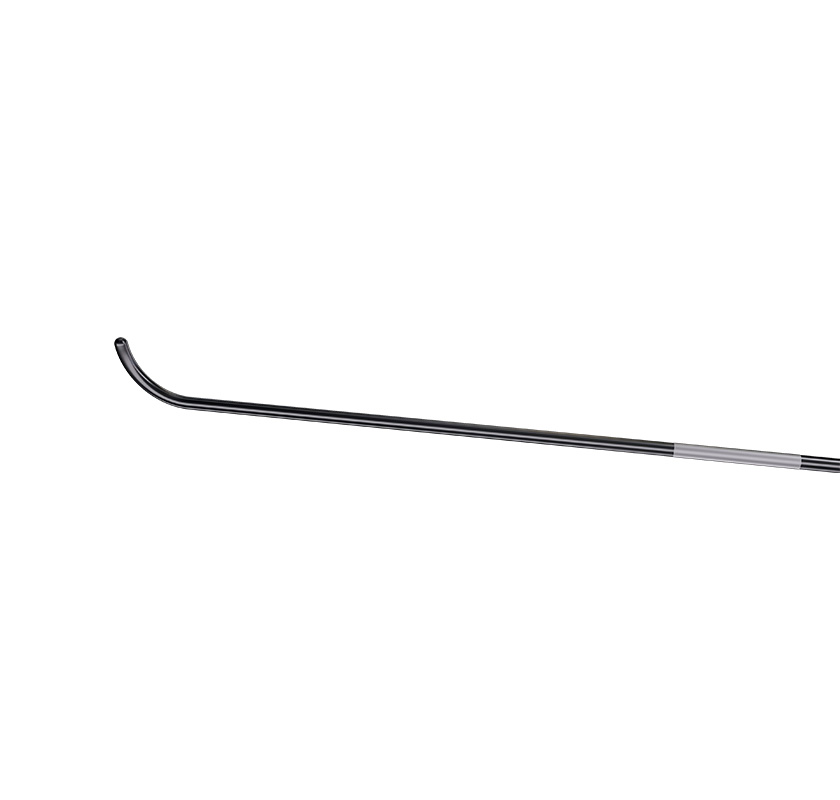

Soft tip with coil sheath enhances trackability and crossability in complex tortuous vessels

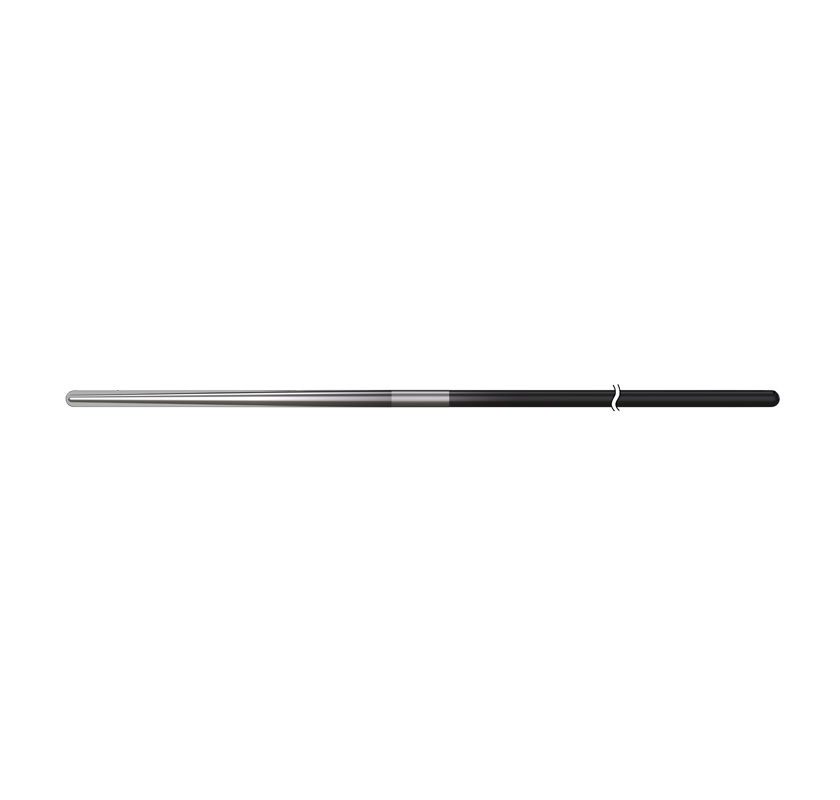

Core-to-tip design reduces whip effect and provides stable support
Distal hydrophilic coating significantly reduces push resistance
Intended Use
Applicable for diagnosis or interventional therapy of the peripheral vascular system, guiding catheters and other devices to reach the target location.
Technical Specifications & Materials
Parameter Values
Outer Diameter (D) 0.018in / 0.014in
Length (L) 110cm / 150cm / 215cm / 310cm
Tip Weight Standard / Extra Stiff
Coating (Distal) Hydrophilic Coating (PVP)



Model Specification (in) Outer Diameter D (mm) Effective Length L (±10%) (cm) Hydrophilic Coating Length (±5%) (mm) Tip Flexibility
PMW018150MD 0.018 0.46 +0.01/-0.06 150 120 Standard
PMW018215MD 215 120
PMW018310MD 310 120
PMW018110EX 110 80 Reinforced
PMW018150EX 150 80
PMW018215EX 215 80
PMW018310EX 310 80
PMW014150MD 0.014 0.36 +0.01/-0.06 150 110 Standard
PMW014215MD 215 110
PMW014310MD 310 110
PMW014150EX 150 80 Reinforced
PMW014215EX 215 80
PMW014310EX 310 80
